Technical details

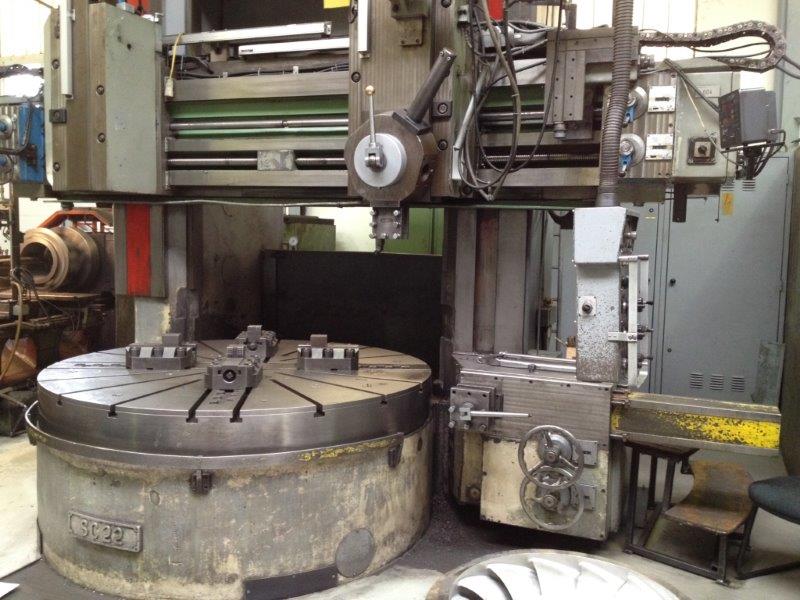

Type of machine: Vertical lathe
Manufacturer, Model: Titan Umaro SC 22
YOM: 1979
Control: Conventional
Max. turning dia: 2500 mm
Max. turning height: 1500 mm
Other technical details:
  • Max. workpiece weight: 12 t.
  • Table speed: 1-140 rpm
  • Max. turning diameter with side support: 2100 mm
  • Both vertical supports swiveling in both directions 35 °
  • Max. travel of cross-rail: 1200 mm
  • Max. travel of right vertical head: 760 mm
  • Max. travel of left vertical head: 1200 mm

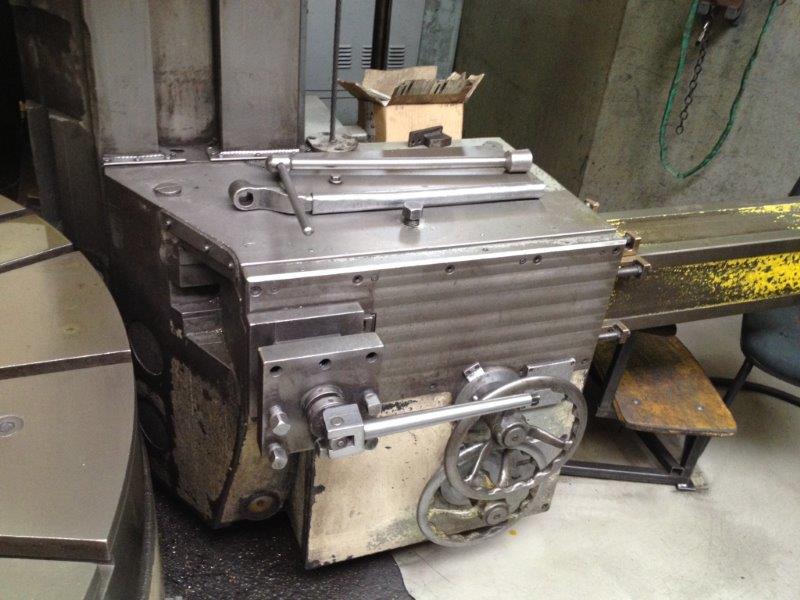

  • Max. travel of side head: 700 mm
  • Total weight: 32 t.
  • Overall dimensions ( L x W x H ): 4200 x 4300 x 4600 mm
Price: SOLD
