Technical details
| Tip stroja: | Vertikalni obradni centar |
| # of CNC axis: | 3 |
| Mfg. No.: | - |

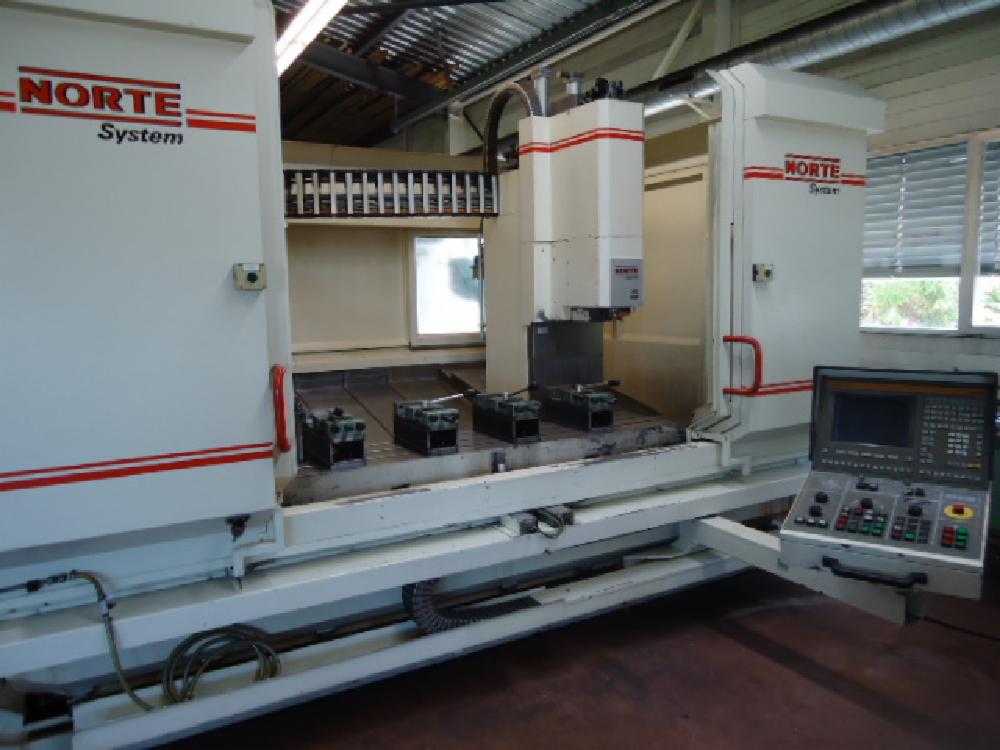

| Manufacturer, Model: | NORTE VS800 |
| Made in: | Germany |
| Y.O.M: | 1989 |
| Table size: | 2120 x 450 mm |
| X-Y-Z : | 2000 x 400 x 400 mm |
| Control: | Siemens 820M |
| Spindle: | 6300 RPM |
Other technical details
| Spindle | |
| Stroke: |
200/600 mm |
| Capacity: | 18 kw |
| Head: | DIN 69 871 |
| Type: | SK 40 |
| Power: | 15/18.5 kW |
| Changing tools: | 40 |
| Feeding speed | |
| X-axis: | 0-8400 mm/min |
| Y-axis: | 0-8400 mm/min |
| Z-axis: | 0-10000 mm/min |
| Rapid feeding (x, y, z): | Tool weight less than 5kg |
| Machine dimensions | |
| Length: | 5500 mm |
| Width: | 3700 mm |
| Height: | 3000 mm |
| Machine weight: | 9000 kg |
| Tip ponude: | sa lagera |
| Status: | Prodano |
| Cijena: | N/A |
